3466A Digital Multimeter

First Catalog c.1977
Last Catalog <year>
Class 4 1/2-digit

3466A User Manual

Introduced in 1977; mentioned HP Journal of December 1978.

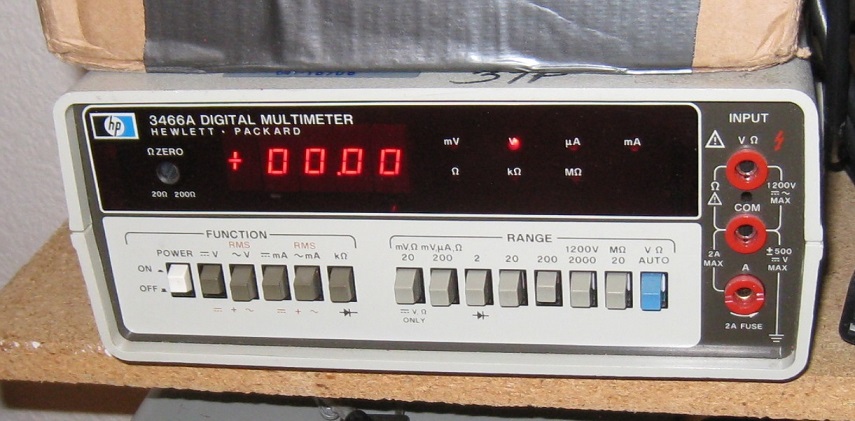

The 3466A multimeter is a 4.5 digit, autoranging (Volts and Resistance), seven function multimeter. Functions are: DC voltage, AC voltage, DC+AC voltage, DC current, AC current, DC+AC current and Resistance.

This meter can be run from wall power or built in sealed lead acid battery if the option is chosen. The 3466A appears to have had a decent sales run, released in 1977 and still appearing in a 1991 HP catalog, thats at least a 14year run.


Basic specifications

DCV

  • Ranges : 20mV to 1200V
  • Sensitivity: 1μV
  • Best accuracy: +-(1.03% reading + 1 count) @ 2-200V
  • Input resistance : 10MΩ +- 0.5%

ACV

  • 100kHz True RMS bandwidth
  • Ranges: 200mV to 1200V
  • Best Accuracy: 1.05% of reading + 2 counts @ 50Hz-20Khz
  • Input impedance: 2MΩ shunted by < 75pF

Resistance

  • Ranges: 20Ω to 20MΩ
  • Sensitivity: 1mΩ
  • Best Accuracy: 1.03% + 1count @ 2KΩ, 20KΩ, 200KΩ ranges
  • Voltage: 5mV@20Ω, 500mV@200Ω, 1v@2kΩ-20MΩ

DCI

  • Ranges: 200μA to 2A
  • Sensitivity: 10nA
  • Accuracy: 1.004% + 0.15digits@200uA-20mA , 1.01% + 0.15digits@200mA-2A
  • Burden Voltage: <220mV @ 200μA-20mA, <240mV @ 200mA , <600mV @ 2A

ACI

  • Ranges: 200μA to 2A
  • Best Accuracy: 1.2% +20digits (30Hz-10KHz) @ 2A range
  • Burden Voltage: <220mV @ 200μA-20mA, <240mV @ 200mA , <600mV @ 2A
Options/Plugins
Standard Streamlined portable case With handle. AC line or rechargeable battery operation including charger
Option 001 Streamlined portable case with handle. AC line Operation only
Option 002 Rack Mount case AC line operation only
