HP 3460B Digital Voltmeter

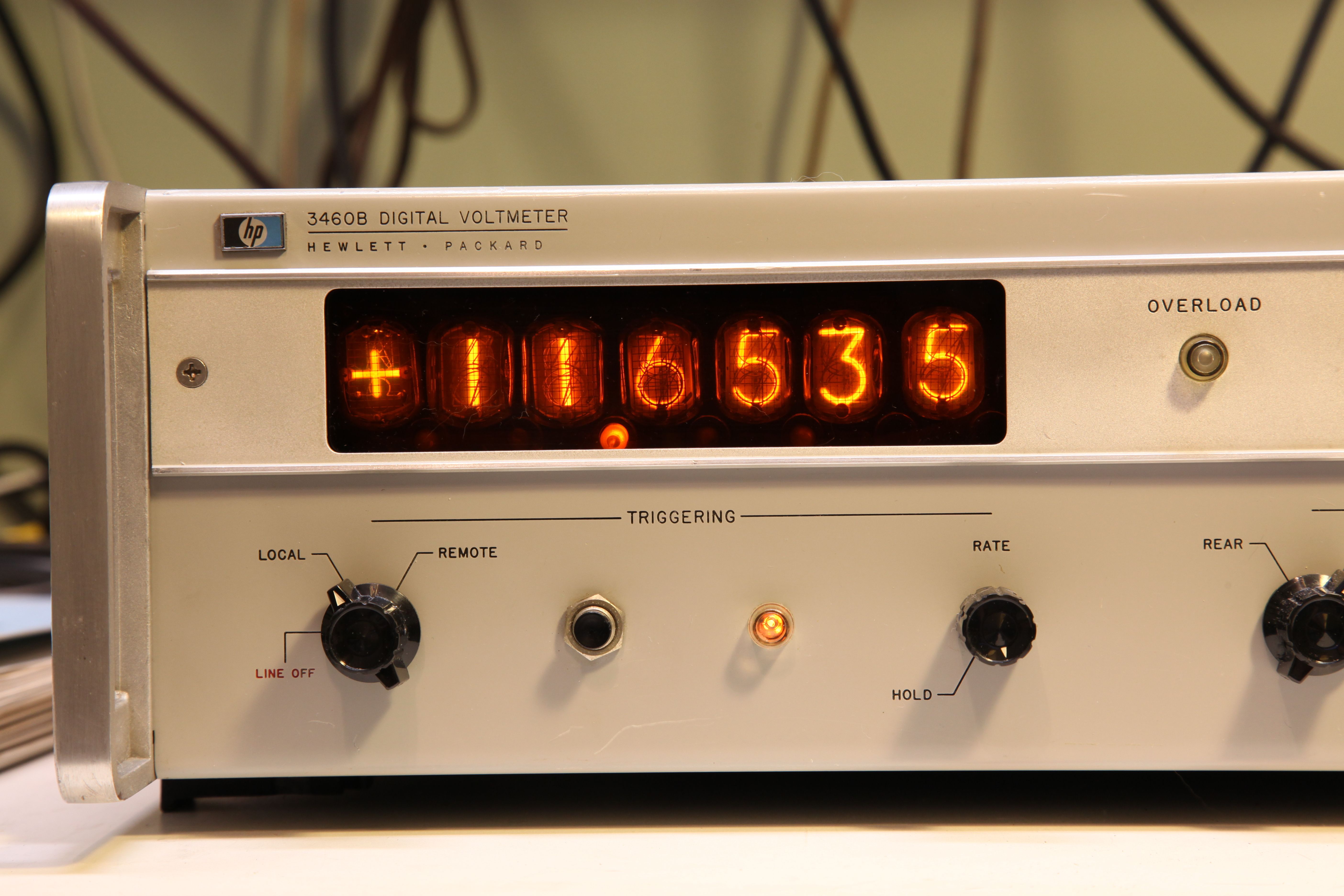

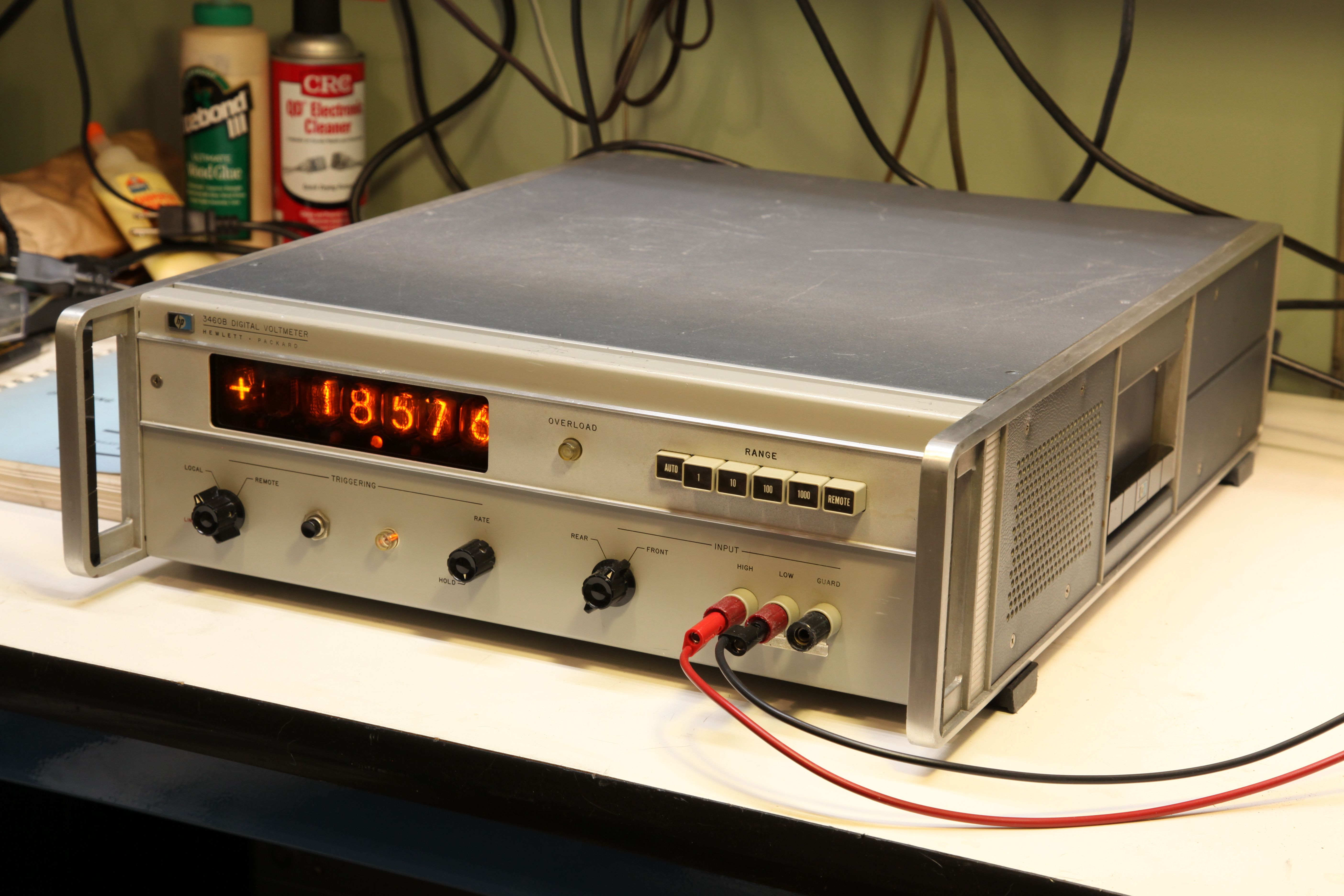

The HP 3460B is a full five digit DVM with an inline nixie tube readout and manual, automatic, or remote range selection.

DC voltage ranges are:
+/-1.00000 V
+/-10.0000 V
+/-100.000 V
+/-1000.00 V; Overranging 20% on all.

Input resistance is 10 MΩ on all ranges; increases to >1 GΩ on 1 and 10 V ranges when displayed value is within 5% of actual measured value (null)

Guard terminal may be as great as +/-500 V from chassis ground; Low input terminal may be as great as +/- 50 V from Guard terminal voltage.

Power: 115 or 230 V +/-10%, 50~60 Hz, 60 W
Dimensions: 16-3/4“ W x 5” H x 19-3/8“ D (425 x 127 x 492 mm); Weight: 38 lbs/17.6 kg

Available Options
Option 001	1224 BCD output
Option 002	1248 BCD output (Compatible w/ 3461A AC/Ohms Converter), +$150
Option 003	1224 BCD output (Compatible w/ 3461A AC/Ohms Converter), +$150
Option 004	1248 BCD output, AC Normal-mode rejection filter, +$250
Option 005	1224 BCD output, AC Normal-mode rejection filter, +$250
Option 006	1248 BCD output, AC Normal-mode rejection filter, (Compatible w/ 3461A AC/Ohms Converter), +$400
Option 007	1224 BCD output, AC Normal-mode rejection filter, (Compatible w/ 3461A AC/Ohms Converter), +$400
